Ecco sotto alcuni esempi che posso essere monitorizzati:

Data Logger Onboard Memory/Real-time Streaming

Lo strumento può memorizzare fino a 80 minuti di acquisizione di dati, 6 canali simultaneamente fino a 99 sessioni. Logged data can be uploaded to a PC via high speed USB Port for further analysis with the included powerful PLX Logger software. Serial data can also be streamed via USB port for real-time PC monitoring and recording (same as M-500). Sampling rate is 10Hz for 6 simultaneous channels.

Sensori esterni

Lo strumento is capable of connecting to 3 external sensors. 1) Wideband oxygen sensor (Bosch or NTK) for accurate air/fuel ratio measurements. 2) K-Type thermal coupler for exhaust gas temperature measurements. 3) Knock sensor for knock volts and audible knock detection. This gives you the capability of actually "listening" to your knock sensor with headphones to detect ping, or signs of premature detonation.

Ecco sotto alcuni esempi che posso essere monitorizzati:

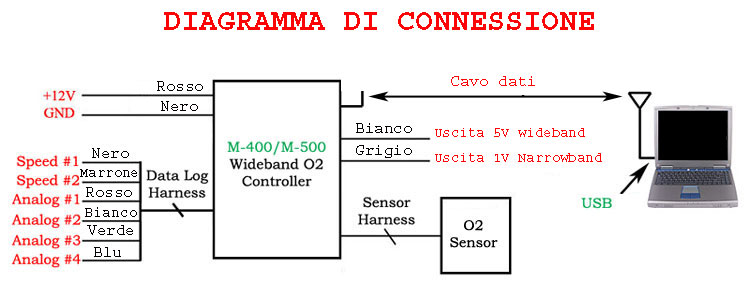

Data Logger Inputs

Questo strumento present 6 ingressi (2 speed, 4 analog) data logger with over 80 minutes of on board memory. The 2 speed inputs can be connected to any signal which gives a pulse (Freq Range: 0Hz-10KHz) and the 4 analog inputs can be connected to any signal which gives a voltage between 0-5V. Analog voltages between 5V-25V will be capped at 5V and will not damage the data logger. This gives the user absolute freedom to interface with various signals to and from your ECU.

Avanzato software di analisi:

The included PC software is both versatile and powerful. Data can be recorded in real-time on the PC or linked with the R-500 to download prerecorded data. PLX Logger (free download) comes with the following key features.

Fully Customizable/Real-time Gauges

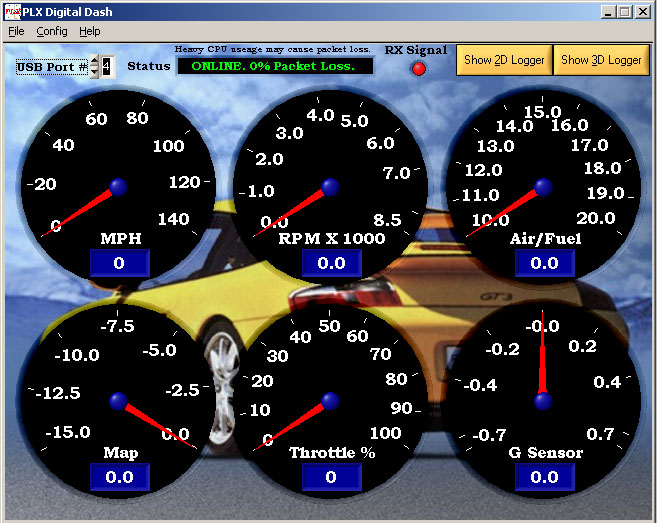

Software can be fully customized to display any gauge you wish. The user has the freedom of setting ranges, labels, colors and even background wallpaper! Gauge needles will move in real-time when interfaced with the controller.

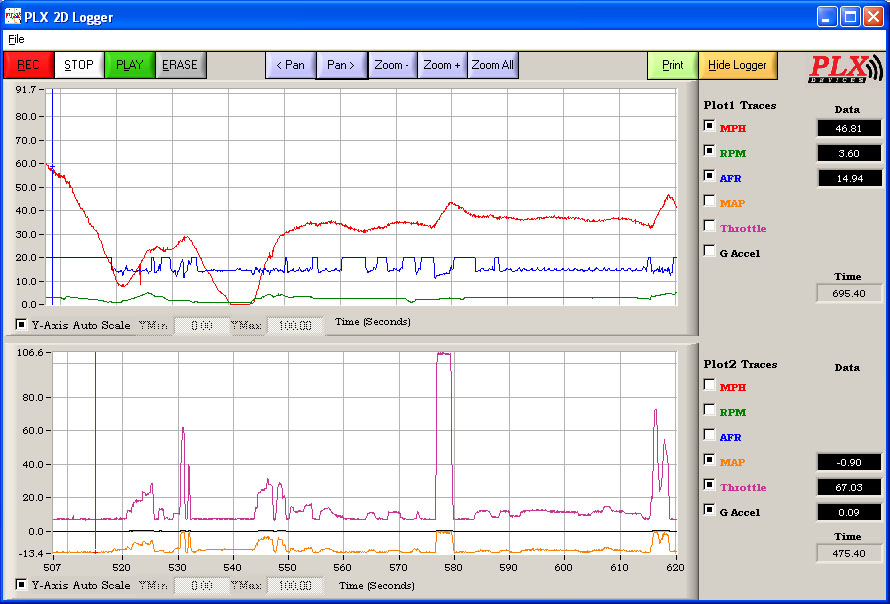

Fino a 6 canali visionabili simultaneamente che possono essere stampati contemporaneamente. L'utente può muoversi in 2D con il cursore ingrandendo e spostando il grafico dei dati acquisiti.

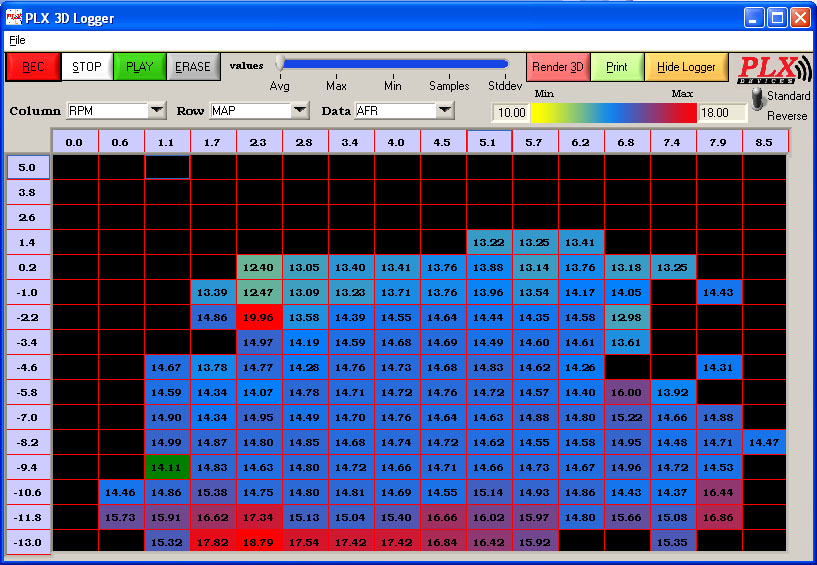

Data points can be plotted against 2 other input channels of your choice. RPM, Engine Load and AFR can be plotted in 3D to determine your fuel map characteristics.

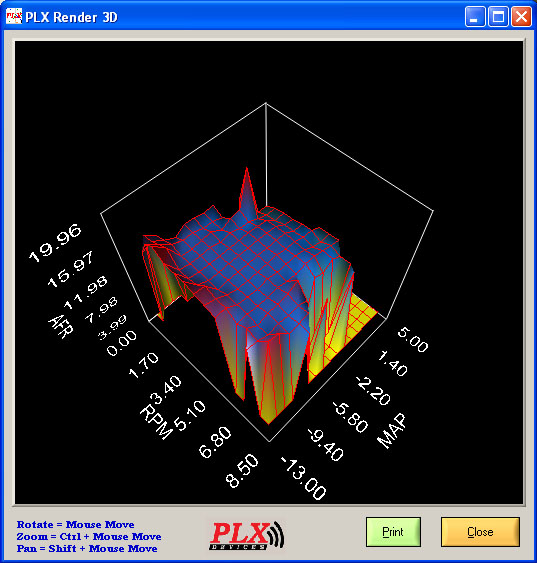

Data from 3D Logger can be rendered giving you a beautiful graphical representation of your 3D Logger table values.

Questo strumento utilizza sonde lambda della qualità migliore in commercio senza compromessi sia sulla qualità che sulla velocità della lettura. Lo strumento può essere completamente personalizzato, si può scegliere il carburante utilizzato.

Il controller consists of the latest 32 bit microprocessor technologies and has a tremendous amount of processing power. New firmware upgrades with additional features will routinely be available. Upcoming firmware releases will implement horse power, torque, and g force calculations. Every R-Series controller comes with a firmware reflash card. Simply connect one end of the card to the R-Series controller and the other end to your computer's parallel port. Upload the new firmware, reboot and your R-Series wideband controller will never be the same!

Luce programmabile:

Lo strumento ha integrato un Led di avviso, che può essere configurato per allarmare in base ai giri oppure in base a qualunque cosa si voglia. For example, you may choose to set the warning light to activate if your throttle position exceeds 50% and your AFR rises above 13.9. You may also setup the warning light as a shift light utilizing a 1 variable comparison. For example, if your RPM signal oscillates at 300Hz at 6,000RPM, by setting S1 > 300Hz will trigger the LED making it a fully programmable shift light.

Calibrazione sensore battito in testa

Questo strumento prevede un avanzato algoritmo di riconoscimento del battito in testa. Your engine's background knock noise can be normalized with respect to your RPM. Since all vehicles exhibit different noise characteristics, the R-500 can be setup to neutralize your engine's background noise. Questo strumento è capace di mostrare in volt quanto è presente il battito in testa, permettendo così di regolare o affinare la mappa dell'anticipo.

Uscita segnale sonda completamente configurabile:

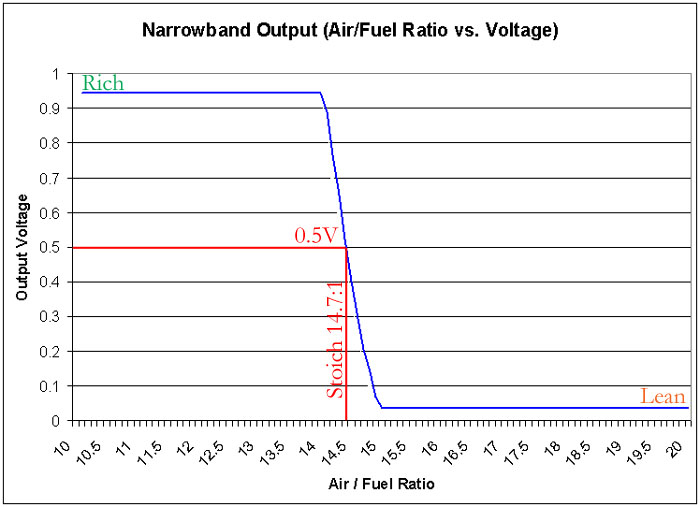

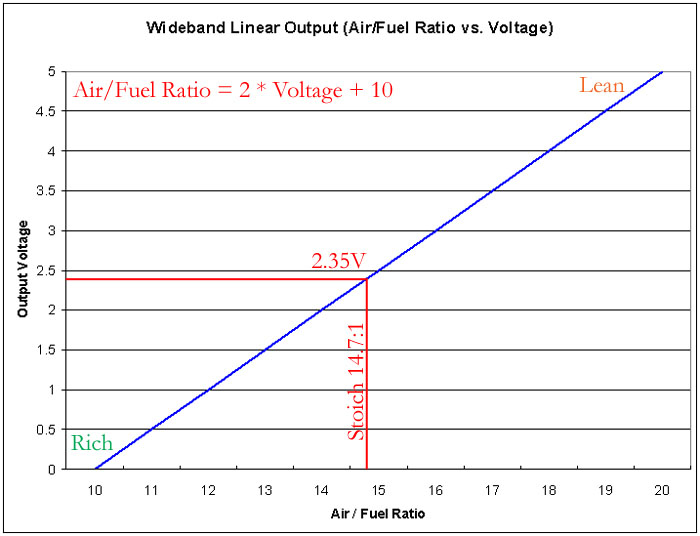

In addition to the linear 0-5V analog output, and 0-1V narrowband analog output, the R-500 has an extra output which is fully customizable. You will be able to customize how your output voltage corresponds with the measured air/fuel ratio (lambda) to fit and integrate with any application you wish. This procedure can be done on the R-500 unit and does not require a PC. All R-Series analog outputs can be used simultaneously.
